Cassette Tape

The Apple II can store and retrieve digital data using a standard audio cassette tape recorder. The hardware involved is fairly simple; all the intelligence is in the firmware. When you store a program, routines in the monitor ROM cause flip-flop J13-9 (Fig. C12*) to generate square or rectangular waveforms. Thus, J13-8 then drives the CASSETTE DATA OUT jack. This jack is meant to be connected to the microphone input of the recorder.

The earphone output of the recorder connects to the CASSETTE DATA IN jack of the Apple. When you load a program, the signals from the tape pass through operational amplifier K13, then appear at an input of data selector 1114. The 6502 can read the output of 1114 under program control. The program (again in the monitor ROM) then processes the cassette signal to reproduce the data.



In this section we will describe the hardware involved in writing and reading cassette tapes. We will also touch on some aspects of the cassette system that are actually determined by the firmware.

Data to be recorded on tape is formatted into records. Each record consists of

several seconds of header tone followed by a sync bit, the actual data, and a check

sum. Binary files and machine code are recorded as one record (Fig. 7-6A). BASIC

(A) Binary files or machine code.

(B) BASIC programs.

Fig. 7-6. Cassette tape formats.



94 Apple II Circuit Description

programs are recorded as two records (Fig. 7-6B). The first record contains the BASIC program's length in the record's data field. The second record contains the BASIC program itself.

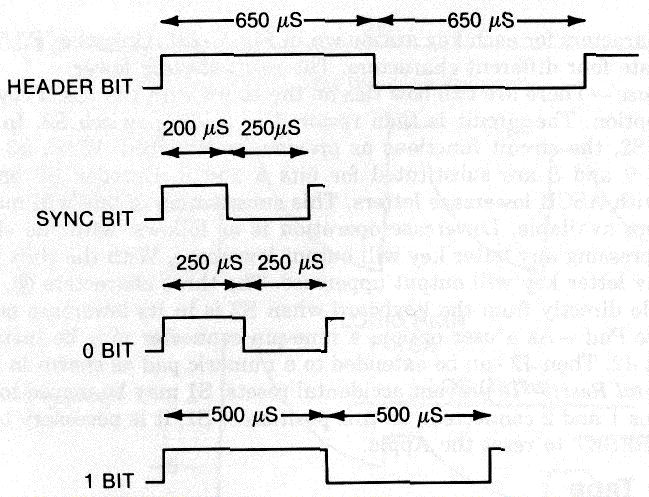

Fig. 7-7 shows individual bits or cycles of the tones that make up the format. The times shown are approximate, but they are within 2% of measured values. The header tone consists of half cycles of 650 microseconds each. This is a frequency of 770 Hz. The sync bit contains one-half cycle of 200 microseconds followed by one-half cycle of 250 microseconds. A 0 bit consists of two 250 microsecond half cycles. Data of all 0's would be a tone of 2000 Hz. A 1 bit consists of two half cycles of 500 microseconds each. Data of all l's would be a 1000-Hz (1-kHz) tone. It takes 500 microseconds to transmit a 0 and 1000 microseconds to transmit a 1. The average transmission rate for random data is therefore 1333 bits per second.

Data is recorded low byte first. Within each byte the MSB is recorded first.

Fig. 7-7. Cassette bit timing.

Fig. 7-8 shows typical tape cassette waveforms near the time of the sync bit. When the cassette output ($C020-$CO2F) is accessed, J13-11 goes low for 489 nS (point A). On J13-11's rising edge, J13-8 is clocked (point B). Since J13-8 connects to J13-12 (Fig. C12*), this flip-flop will toggle when clocked. In Fig. 7-8 we have shown the last two and one-half cycles of the header tone. The sync bit comes next, followed by the first data byte. In this example, the first byte is $130 or 10110000 (binary).

Note that on power-up, J13-8 can be either low or high. The processor can neither initialize nor read the state of J13-8. As a result, the J13-8 waveform could be inverted from what is shown in Fig. 7-8. No matter in which state J13-8 starts, it toggles every time J13-11 goes high. That is all that matters.

Resistors R18 and R19 attenuate J13-8 to about 0.8%, or 32 mV peak-peak open circuit. The attenuated signal appears at the CASSETTE DATA OUT jack of the Apple. It is connected to the microphone input of the recorder when data is stored. This concludes the discussion of the hardware used in the write direction. We now turn our attention to the read process.




96 Apple II Circuit Description

On data retrieval, the earphone jack of the recorder connects to the CASSETTE DATA IN jack of the Apple. There may or may not be a polarity inversion in going through the recorder; it does not matter. The cassette input is ac coupled by ClO and attenuated to 50% by R17 and R30. The signal then connects to the inverting input of operational amplifier K13.

Operational amplifier K13 is wired to act as a comparator. Ground through R16 provides an average comparator threshold of 0 volt and R15 provides about 100 mV of hysteresis at the input of the comparator. This circuit arrangement is called a zero crossing detector. The minimum cassette input that produces good results is about 1 volt peak-peak. While reading tapes, the output of K13 swings from plus-saturated to minus-saturated, or about ± 4 volts.

Resistor R29 limits current out of the input of H14 when K13-6 is low. Resistor R29 and the input clamping diode of H14 effectively convert the signal to a TTL level at H14-4. Note that the signal is inverted by 1(13. Except for an inversion, the TTL signal at J13-8 has been recreated at H14-4. To see this, compare the waveforms for J13-8 and H14-4 as shown in Fig. 7-8.

At this point we must discuss how the cassette signal gets through data selector H14 (Fig. C12*). If the address is in the range $C060-$CO6F, then F13-9 will go low during 42. This enables 1114 via pin 7. Data selector H14 selects one of its eight inputs as a function of address lines ADO, AD1, and AD2. When the address is $C060 or $C068 (ADO, AD1, and AD2 all equal 0), 1114 is enabled and selects input pin 4 to output on pin 5. Pin H14-5 connects to data bus bit 7. Thus, at either of these addresses, the cassette input is put on data bus bit 7. Bit 7 is used since it is easily tested by various 6502 instructions. Since AD3 is not decoded by this part of the circuit, there are two addresses eight locations apart that can access the cassette input. In such cases, we usually use the lower address ($C060).

Routines in the monitor scan bit 7 at location $CO6O every 12.8 microseconds looking for a transition. By measuring the time between transitions, the routines can distinguish between header, sync, 0, and 1 bits.
